Victor Series

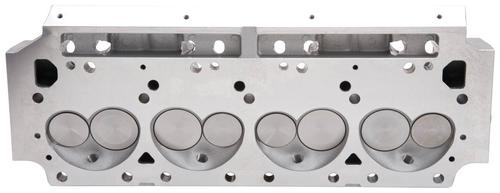

Edelbrock Victor Series Cylinder Head - 77949

Part #
77949
Line:
EDB

Product Information

  • Warranty:  Manufacturer's Defect Warranty
  • Unit of Measure:  Each
  • UPC:  # 85347779499
  • Finish: Satin
  • Material: Aluminum
  • EGR Ready: No
  • Chamber Size (cc): 72cc
  • Bare Or Complete Head: Bare
  • Cylinder Head Style: Standard
  • Valve Guides Included: No

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

Cylinder Head;

The Edelbrock part number 77949 Big Block Chrysler Max Wedge Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition. VICTOR B/B CHRYSLER MAX WEDGE FEATURES:- The best standard port location cylinder head available for competition big-block Chryslers- Intake ports are raised 0.650 inch, exhaust ports are raised 0.250 inch for improved flow- The intake flange is extended 0.950 inch to eliminate the need for intake spacer plates- Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines- Sold without springs or retainers; use recommended springs to match your camshaft- Exhaust flange is extended 0.300 inch from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts- Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers- 72cc combustion chamber volume- Cylinder head part number 77949 comes bare with valves only For B and RB Big Block Chrysler. Intake Ports Raised 0.650 inch For Improved Flow. Exhaust Ports Raised 0.250 inch For Improved Flow. Exhaust Flange Extended 0.950 inch Head Includes Valves.

Victor Series cylinder heads are used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is competition ready cylinder heads that feature race winning technology, right out of the box. Victor Jr. cylinder heads are compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder heads feature raised runners, revised chambers and relocated valve for all out competition. Victor Pro-Port CNC heads are fully CNC ported versions of Victor heads if you're looking for maximum power.

Brand Information

Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nation's premier designers, manufacturers and distributors of performance replacement parts for the automotive and motorcycle aftermarkets. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses six locations in Southern California totaling more than 500,000 square feet.
