How to Replace Rear Shocks
Tools & Materials
Instructions
![Removing tire](/cmsstatic/WEB-3854-step1-1.jpg)
Step 1: Remove Your Vehicle’s Old Shock Absorber
![Using a jack to safely lift vehicle](/cmsstatic/WEB-3854-step1-2.jpg)
Raise the jack upward slightly to relieve the tension of the suspension.
![Pointing to area under the car](/cmsstatic/WEB-3854-step1-3.jpg)

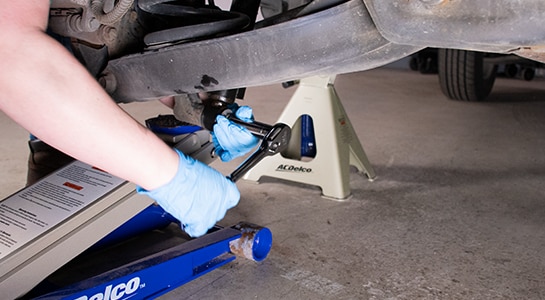

![Removing bottom nut using a socket](/cmsstatic/WEB-3854-step1-4.jpg)
![Removing the top bolt](/cmsstatic/WEB-3854-step1-5.jpg)
Do It Right: Not all vehicles will have a top bolt to remove, some have a threaded stud that doesn't require removal. |
![Remove the shock absorber](/cmsstatic/WEB-3854-step1-6.jpg)
Do It Right: You may need to compress the shock to remove it from the vehicle. |
![Manually pumping the shock absorber](/cmsstatic/WEB-3854-step2-1.jpg)
Step 2: Install Your New Rear Shock Absorber
Do It Right: If the shock is packaged with a band on it, you may want to wait until it’s in place to cut the band. |
![Installing the new shock absorber](/cmsstatic/WEB-3854-step2-2.jpg)
![Compressing the shock](/cmsstatic/WEB-3854-step2-3.jpg)
![Reinstalling and finger-tightening the top bolts and bottom nut](/cmsstatic/WEB-3854-step2-4.jpg)
Do It Right: Don’t torque these till the wheel is replaced and the vehicle is lowered so that the suspension is loaded. |
![Reinstalling the spash guard](/cmsstatic/WEB-3854-step2-5.jpg)
Do It Right: Shocks should be replaced in pairs, so repeat these steps on the other side. |
