How to Change the Cabin Air Filter in a 2010-2016 Chevy Equinox

These step-by-step instructions explain how to remove and replace the cabin air filter on a 2014 Chevy Equinox LTZ, and these instructions will be similar for 2010, 2011, 2012, 2013, 2015, 2016, and 2017 Chevy Equinox and GMC Terrain models, as well as Chevrolet Captiva models from 2012 to 2015. Improve airflow and A/C performance with a new cabin air filter, which removes contaminants from the outside air before they enter your SUV’s cabin. Your 2008 to 2012 Chevy Equinox’s owner’s manual includes the recommended replacement intervals, but if your cabin air filter is dirty or clogged, or if you drive in environments that are heavily polluted, you can change the cabin air filter more often for improved cabin airflow and comfort.


Tools & Materials List

Step by Step Instructions:

Tools & Materials

Safety Eye Glasses Safety Glasses
Protective Gloves Nitrile Gloves
3 cabin air filters stacked Cabin Air Filter

How to Change the Cabin Air Filter in a 2010 to 2016 Chevy Equinox

The cabin air filter in your Chevy Equinox works to trap and remove contaminants like dust, dirt, and soot from the outside air before it enters your vehicle’s cabin, ensuring clean air for your A/C and heating system. Additionally, replacing your 2010 to 2016 Chevrolet Equinox’s cabin air filter can help improve A/C system performance and airflow. Signs that your car may need cabin air filter service include odors from the vents, issues with air conditioning, or an overall lack of airflow. If you’re unsure when you should replace your Equinox’s cabin air filter, check the owner’s manual for the recommended replacement intervals. Breathe easy and minimize allergens in your vehicle by changing the cabin air filter in your 2010 to 2016 Chevrolet Equinox with these detailed instructions. If you’re not completely comfortable doing this yourself, we’d be happy to recommend a professional technician in your area.
Show More Show Less

Prepare Your Vehicle

Step 1: Prepare Your Vehicle
Your cabin air filter is located behind the glove box. Empty your glove box contents.

Step 2: Lower the Glove Box
Push the middle tab at the top of the glove box so it can be lowered.
Show More Show Less

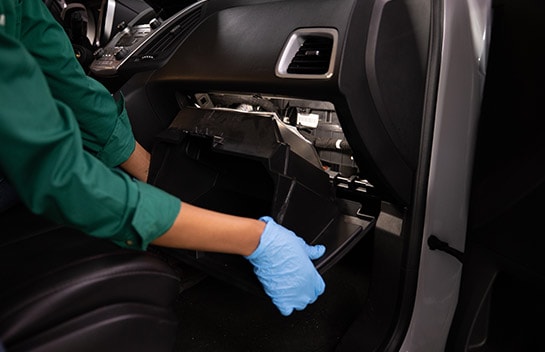

Anna lowers and removes the glove box from the Equinox to access the cabin air filter assembly behind it.

Step 3: Remove the Glove Box

Remove the glove box completely by lifting up on both sides so the tabs at the back can slip out. Set the glove box assembly aside.
Show More Show Less

Remove Old Cabin Filter

Close up shot of Anna’s gloved hands pushing up on the two bottom clips of the cabin air filter housing cover

Step 4: Lift The Cabin Filter Housing Cover

Push up on the two bottom clips of the cabin air filter housing to disengage and lift the housing cover.
Show More Show Less
Close-up on Anna removing the old cabin filter from the vehicle and Anna holds up the old and new filters for comparison.

Step 5: Remove The Old Cabin Filter

Pull the old filter out of the housing.

Do It Right: Make sure to clean any dust or debris out of the inside before installing your new filter.

Show More Show Less

Installing the New Cabin Filter

Close-up on Anna installing the new cabin air filter with the arrows labeled “Air Flow” are pointing down.

Step 6: Install the New Cabin Air Filter

Install your new cabin air filter, making sure the airflow arrows are pointed downward. Reengage the bottom housing cover clips by snapping it shut.
Show More Show Less
Anna lifts and replaces the glove box assembly after replacing the new cabin air filter.

Step 7: Replace the Glove Box

Lift the glove box back into place and insert the tabs into their slots at the rear of the assembly. Raise the glove box so that the tab in the middle slips back into place. Be sure to replace any items you took out of the glove box.
Show More Show Less
