Torker-Plus

Edelbrock Torker-Plus Camshaft - 5022

Part #
5022
Line:
EDB

Product Information

  • Warranty:  90 Day Limited Warranty
  • Unit of Measure:  Per Kit
  • UPC:  # 85347050222
  • Material: Hardened Steel
  • Exhaust Advertised Duration (Deg): 290 Degree
  • Exhaust Duration At 0.050 Inch Lift (Deg): 224 Degree
  • Exhaust Valve Lift With OE Rocker Arm Ratio (in): 0.496 Inch
  • Intake Advertised Duration (Deg): 280 Degree
  • Intake Duration At 0.050 Inch Lift (Deg): 214 Degree
  • Intake Valve Lift With OE Rocker Arm Ratio (in): 0.472 Inch
  • Intake Centerline (Deg): 107 Degree
  • Lobe Separation Angle (Deg): 112 Degree
  • Range (RPM): 2000 To 9000 RPM
  • Intake Valve Lift (in): 0.472 Inch
  • Lifter Style: Hydraulic
  • Exhaust Valve Lift (in): 0.496 Inch
  • Engine Make/Size: Ford 260-302
  • Camshaft Type: Hydraulic

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

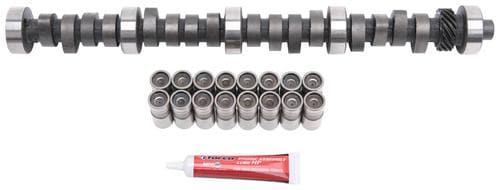

Camshaft; With Lifter Kit;

Edelbrock part number 5022 Torker-Plus Camshaft is designed for small-block Ford 289-302 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft . Camshaft Specifications: Duration at 0.050 Intake: 214 degrees - Duration at 0.050 Exhaust: 224 degrees- Lift at Valve Intake: 0.472 inch- Lift at Valve Exhaust: 0.496 inch- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees Designed for 2500 to 6500 RPM Performance. Designed for Hi-Perf Street; Drag or Marine Use. Matched to Edelbrock Torker II Intakes. Includes Hydraulic Lifters and Assembly Lube. Dyno-Matched/Street-Proven Performance. Take the Guesswork Out of Camshaft Selection!
