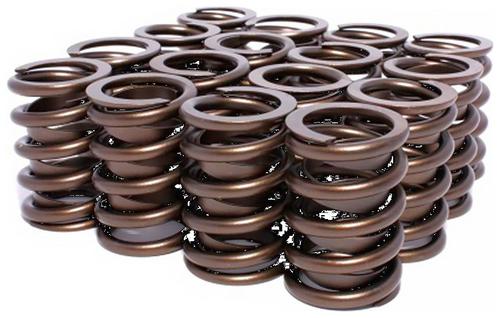

Edelbrock Sure Seat Valve Spring - 5862
- Part #
- 5862
- Line:
- EDB
Product Information
- Warranty: Manufacturer's Defect Warranty
- Unit of Measure: Each
- UPC: # 85347058624
- Material: Chromium Silicon
- Inside Diameter (in): 1.082 Inch
- Outside Diameter (in): 1.500 Inch
- Installed Height (in): 1.880 Inch
- Seat Pressure (Lbs): 90 Lbs.
- Valve Spring Type: Cylinder
- Spring Style: Single
- Damper Included: Yes
- Coil Bind Height (in): 1.340 Inch
- Installed Pressure (Lbs): 90 Lbs.
- Open Height (in): 0.420 Inch
- Camshaft Style: Flat Tappet
- Open Pressure (psi): 220 psi
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Engine Valve Spring; The Edelbrock number 5862 Sure Seat Valve Spring for Big-Block Chevy 396-402-427-454 V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. For Use With Cast-Iron Heads. Springs Made of Highest Quality Spring Wire. Springs Precision Wound To Close Tolerances. Use with Original Equipment Heads Only.
