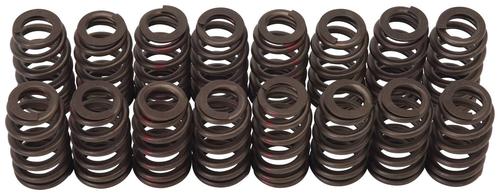

Edelbrock Sure Seat Valve Spring - 5768
- Part #
- 5768
- Line:
- EDB
Product Information
- Warranty: 90 Day Limited Warranty
- Unit of Measure: Per Set
- UPC: # 85347057689
- Material: Chromium Silicon
- Inside Diameter (in): 0.650, 0.885 Inch
- Outside Diameter (in): 1.066, 1.300 Inch
- Installed Height (in): 1.800 Inch
- Spring Style: Beehive
- Damper Included: No
- Coil Bind Height (in): 1.140 Inch
- Installed Pressure (Lbs): 138 Lbs.
- Open Height (in): 0.600 Inch
- Camshaft Style: Roller
- Open Pressure (psi): 326 psi
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Valve Spring; Kit;
The Edelbrock number 5768 Sure Seat Valve Spring for Chevrolet LS V8 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. use only the springs recommended by Edelbrock for each camshaft application. Replacement For part number:[61939] LT4 RPM Xtreme Heads. Springs Made of Highest Quality Spring Wire. Springs Precision Wound To Close Tolerances.
