Superwinch

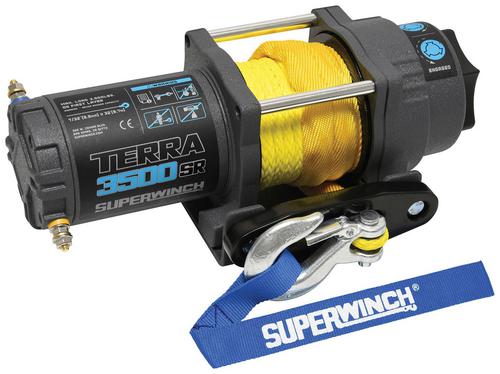

Superwinch Winch - 1135270

Part #
1135270
Line:
SUW

Product Information

  • Warranty:  90 Day Limited Warranty
  • Unit of Measure:  Each
  • UPC:  # 22705003452
  • Voltage (V): 12 Volt
  • Maximum Pull Capacity (Lbs): 3500 Lbs.

Applications for this Product

  • This product is universal and applies to all vehicles.

Detailed Description

Winch;

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available in 2500, 3500 and 4500 Lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each Winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each Winch includes a 10 Foot wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.

  • Rated Line Pull Of 3500 Lbs.
  • Narrow Drum Allows Easier Mounting In Tight Spaces
  • Universal Mounting Plate
  • Mounting Bolt Pattern 3 inch X 4.9 inch 1.6 Hp Permanent Magnetic Motor
  • 3 Stage Planetary Gearing With 198:1 Ratio
  • Sealed Solenoid With Circuit Breaker
  • Easy To Engage Ergonomic Free spool Control Knob
  • IP67 Protection From Water And Dust
  • Heavy-Duty Clevis Pinned Latched Hook
  • Aluminum Hawse Fairlead
  • 10 Foot Rugged Remote Control With Handlebar Mounted Rocker Switch.

Brand Information

Superwinch's global manufacturing facilities have grown to design and produce a broad range of winches; from electric 12, 24 and 115 volt planetary gear, right angle gear and worm gear units to hefty hydraulic workhorses. Our 1,000 to 50,000 pound capacity winches can be found in diverse industries and applications around the world. These products share Superwinch's common traits of first class design, quality, value and solid construction for safe, simple and reliable operation.
