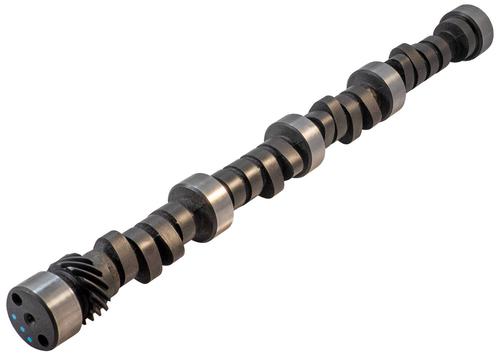

Melling Select Performance Hydraulic Flat Tappet Camshaft - 22305

Part #
22305
Line:
MEL

Product Information

  • Warranty:  No warranty after installation
  • Unit of Measure:  Each
  • UPC:  # 729295506515
  • Cam Type: Hydraulic Flat Tappet
  • Material: Cast Iron
  • Exhaust Advertised Duration (Deg): 313 Degree
  • Exhaust Duration At 0.050 Inch Lift (Deg): 244 Degree
  • Exhaust Valve Lift With OE Rocker Arm Ratio (in): 1.500 Inch
  • Intake Advertised Duration (Deg): 303 Degree
  • Intake Duration At 0.050 Inch Lift (Deg): 234 Degree
  • Intake Valve Lift With OE Rocker Arm Ratio (in): 1.500 Inch
  • Lobe Separation Angle (Deg): 112 Degree
  • Range (RPM): 3500 RPM
  • Cam Code: Class 3
  • Exhaust Lobe Center (Deg): 117 Degree
  • Exhaust Valve Lift (mm): 19.354mm
  • Intake Lobe Center (Deg): 107 Degree
  • Intake Valve Lift (in): 0.488 Inch
  • Intake Valve Lift (mm): 12.395mm
  • Lifter Type: Hydraulic Flat Tappet
  • Exhaust Valve Lift (in): 0.508 Inch
  • Idle Quality: Rough
  • Cam Lift Exhaust (in): 0.339 Inch
  • Cam Lift Intake (in): 0.325 Inch

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

Camshaft; High Performance;

Made in USA. Class III camshaft (230 to 245 degree). Rough idle quality. Good mid to high rpm torque and horsepower. For use with manual transmission or high stall automatic. May need improved carb, exhaust system, and ignition system. Combination street and drag. Will have lower vacuum than stock. Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials

  • Precision engineered for optimum fit and function
  • Manufactured from high quality durable materials for long wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
