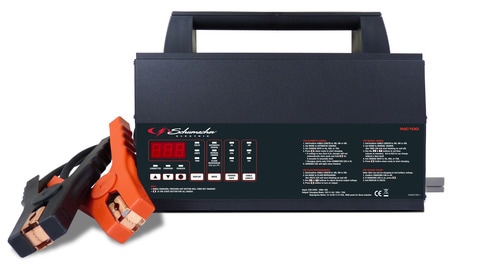

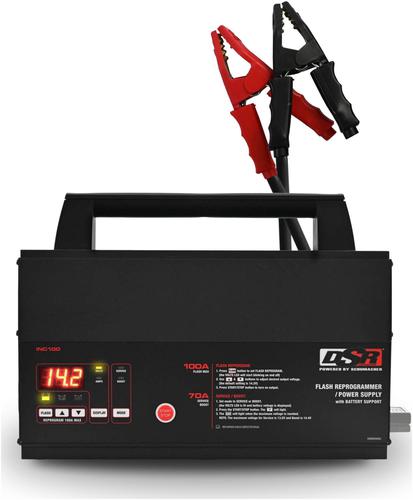

Schumacher 100 Amp 12 Volt Power Supply  Primary Image
Schumacher Electric

Schumacher 100 Amp 12 Volt Power Supply - INC100

Part #
INC100
Line:
SHU
Schumacher 100 Amp 12 Volt Power Supply
533.99 Each
Availability Controls for Schumacher 100 Amp 12 Volt Power Supply

Product Information

  • Warranty:  1 Year Limited Warranty
  • Unit of Measure:  Each
  • UPC:  # 26666420808
  • Height (in): 5-9/16 Inch
  • Height (mm): 141mm
  • Length (in): 17-3/4 Inch
  • Length (mm): 454mm
  • Width (in): 17-7/8 Inch
  • Width (mm): 451mm
  • Weatherproof: No
  • Weight (Lbs): 19.35 Lbs.
  • Voltage (V): 12 Volt
  • Amperage (A): 100 Amp
  • Maximum Amperage (A): 100 Amp
  • AGM Compatible: Yes
  • Engine Start: No
  • Number Of Banks: 1
  • Fully Automatic: Yes

Applications for this Product

  • This product is universal and applies to all vehicles.

Detailed Description

Power Supply; Fully automatic battery charger for regular automotive, lead-acid, calcium, AGM, start-stop and Gel Cell batteries

  • Maintains stable Voltage under varying loads during major vehicle ECU reprogramming and diagnostic work
  • Voltage can be set between 13.0-14.8 Volt
  • Variable charge rates: 4/20/70 Amp
  • Digital Volts and Amps display
  • Manual mode with digital timer
  • Extended reach output cables
  • Heavy-duty cl Amps with replaceable jaws
  • Adjustable mounting brackets for easy permanent installation to most shop vehicle lifts
  • Dual temperature-controlled cooling fans

Brand Information

Since 1947, Schumacher Electric Corporation has been designing and producing custom transformers for the electronics industry. Today, with over fifty years experience working with the leaders in electronics manufacturing, Schumacher Electric Corporation's product lines include magnetic ballasts for the lighting industry, battery chargers, custom-built transformers, welders, and welding accessories.
