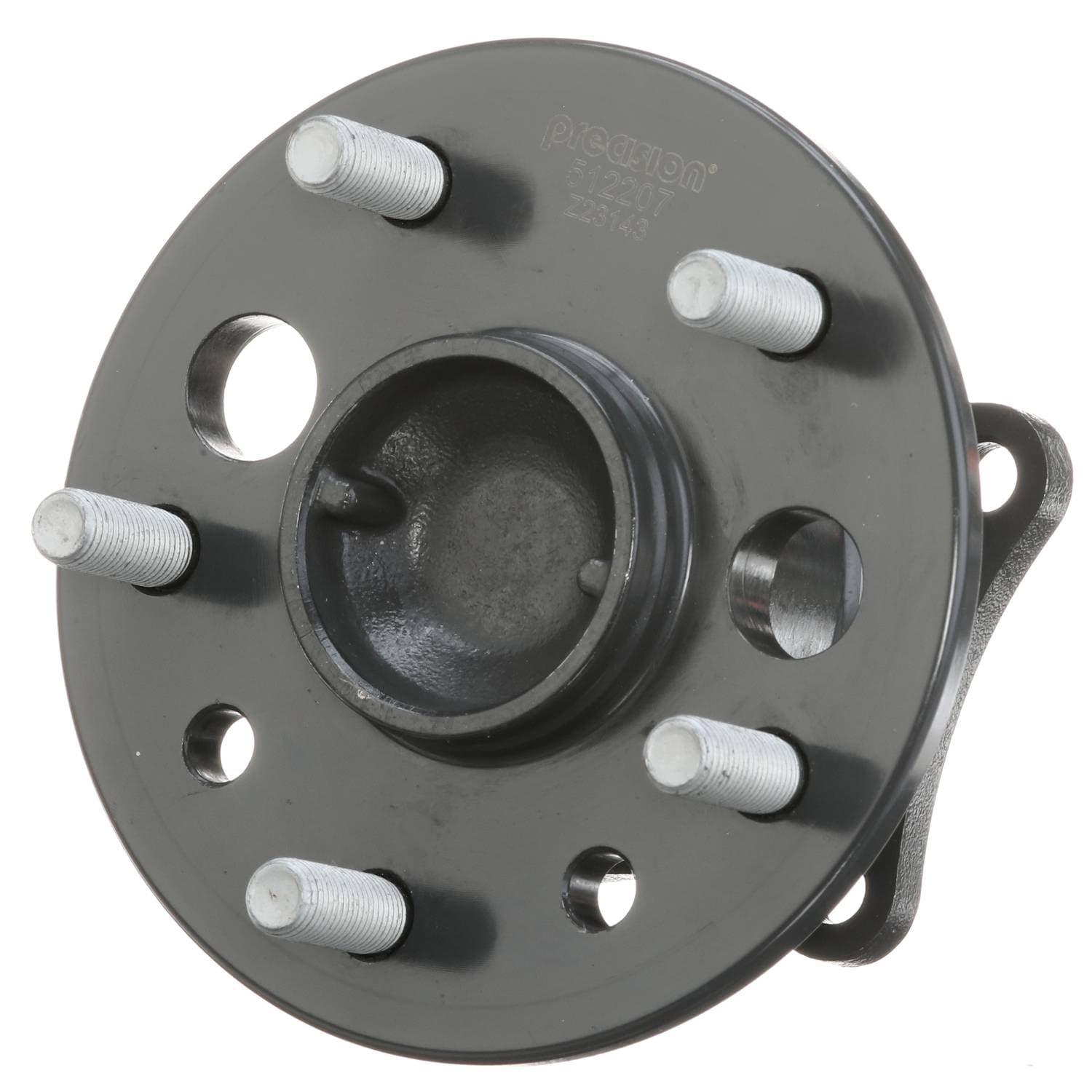

Precision Wheel Bearing And Hub Assembly - 512207
- Part #
- 512207
- Line:
- PRE
Product Information
- Warranty: 3 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 19826054708
- Material: Steel
- Flange Diameter (in): 5.984 Inch
- Flange Diameter (mm): 152mm
- Flange Offset (in): 2.930 Inch
- Flange Offset (mm): 74.5mm
- Hub Pilot Diameter (in): 2.909 Inch
- Hub Pilot Diameter (mm): 73.9mm
- New Or Remanufactured: New
- Flange Shape: Rectangle
- Wiring Harness Included: No
- Bearing Type: Ball
- Number Of Terminals: 1
- Hub Centerbore Diameter (in): 4.500 Inch
- Driven Or Non-Driven: Non-Driven
- Gasket Or Seal Included: Yes
- ABS Ring Type: Tone Ring
- Number Of ABS Sensor Ring Teeth: 48
- ABS Sensor Included: Yes
- ABS Connector Shape: Rectangle
- Number Of Mounting Bolts To Knuckle: 4
- Number Of Lug Bolts Included: 5
- Lug Bolt Thread Size: M12-1.50
- Total Hub Diameter (in): 5.980 Inch
- Total Hub Diameter (mm): 152mm
- Hub Centerbore Diameter (mm): 114.3mm
- Total Hub Height (in): 5.661 Inch
- Total Hub Height (mm): 143.8mm
- Flange Bolt Size (in): 1.181 Inch
- Flange Bolt Size (mm): 30mm
- Flange Bolt Thread Size: M12-1.50
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Wheel Bearing And Hub Assembly;
Precision Hubs provides extensive coverage of bearings for a broad range of automotive and heavy-duty wheel end applications. Manufactured in ISO 9000/9001/9002 certified facilities, they deliver the look, fit and performance of OE.
Brand Information
All Precision branded premium products are designed to meet or exceed OEM requirements. They are engineered and manufactured to our specifications to ensure customer satisfaction. Our Precision products offer a broad range of coverage through all markets, which include Agricultural, Automotive, and Commercial Vehicles.
