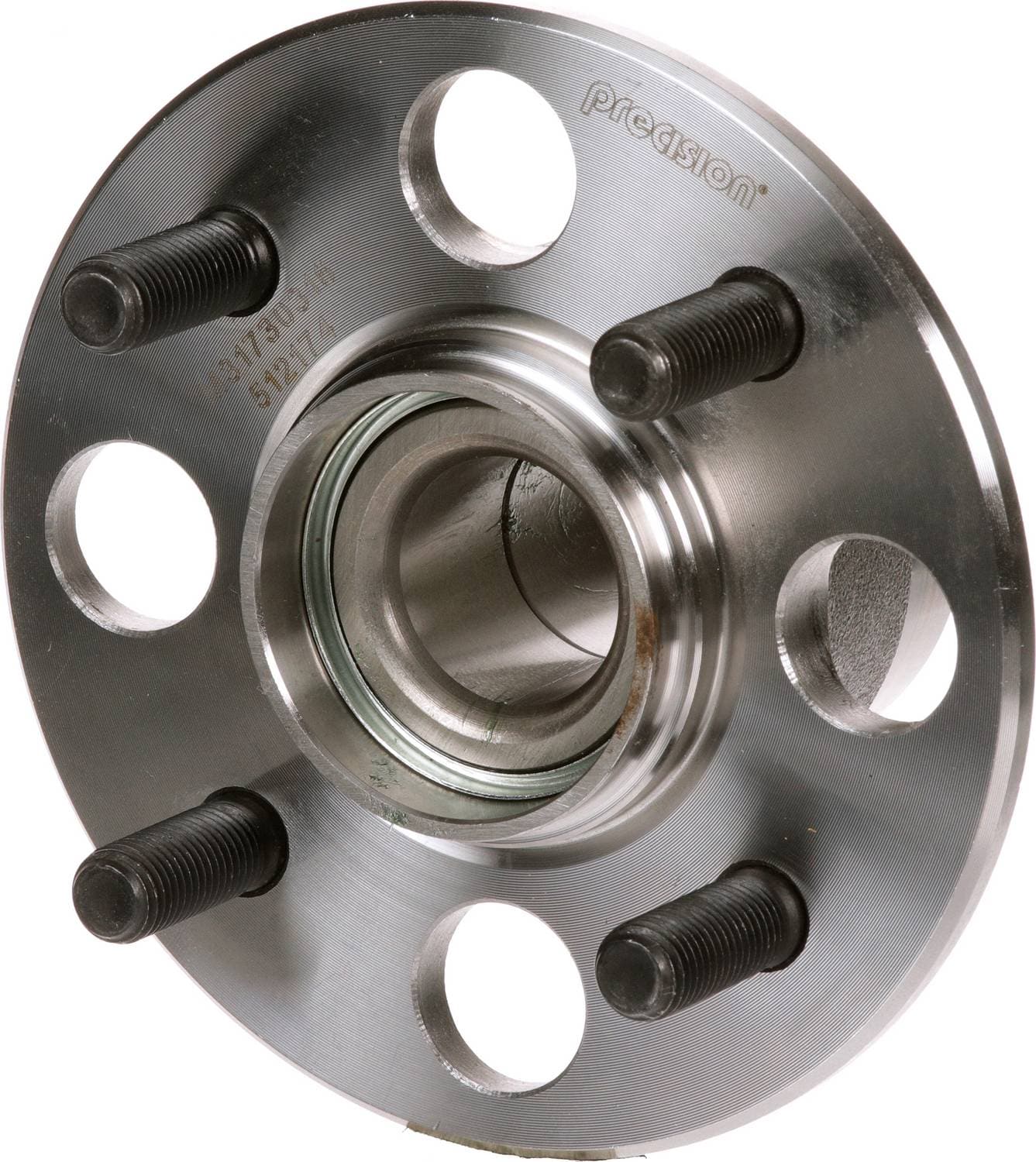

Precision Wheel Bearing And Hub Assembly - 512174
- Part #
- 512174
- Line:
- PRE
Product Information
- Warranty: 3 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 19826054395
- Material: Steel
- Flange Diameter (in): 5.461 Inch
- Flange Diameter (mm): 139mm
- Flange Offset (in): 2.200 Inch
- Flange Offset (mm): 55.9mm
- Hub Pilot Diameter (in): 2.401 Inch
- Hub Pilot Diameter (mm): 61mm
- New Or Remanufactured: New
- Flange Shape: Round
- Wiring Harness Included: No
- Bearing Type: Ball
- Hub Centerbore Diameter (in): 3.940 Inch
- Driven Or Non-Driven: Non-Driven
- Gasket Or Seal Included: Yes
- ABS Sensor Included: No
- Number Of Lug Bolts Included: 4
- Total Hub Diameter (in): 5.460 Inch
- Total Hub Diameter (mm): 138.7mm
- Hub Centerbore Diameter (mm): 100mm
- Total Hub Height (in): 3.397 Inch
- Total Hub Height (mm): 86.3mm
- Flange Bolt Size (in): 1.200 Inch
- Flange Bolt Size (mm): 30.5mm
- Flange Bolt Thread Size: M12-1.50
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Wheel Bearing And Hub Assembly;
Precision Hubs provides extensive coverage of bearings for a broad range of automotive and heavy-duty wheel end applications. Manufactured in ISO 9000/9001/9002 certified facilities, they deliver the look, fit and performance of OE.
Brand Information
All Precision branded premium products are designed to meet or exceed OEM requirements. They are engineered and manufactured to our specifications to ensure customer satisfaction. Our Precision products offer a broad range of coverage through all markets, which include Agricultural, Automotive, and Commercial Vehicles.
