Performer-Plus

Edelbrock Performer-Plus Camshaft - 3702

Part #
3702
Line:
EDB

Product Information

  • Warranty:  90 Day Limited Warranty
  • Unit of Measure:  Each
  • UPC:  # 85347037025
  • Material: Hardened Steel
  • Exhaust Advertised Duration (Deg): 264 Degree
  • Exhaust Duration At 0.050 Inch Lift (Deg): 214 Degree
  • Exhaust Valve Lift With OE Rocker Arm Ratio (in): 0.442 Inch
  • Intake Advertised Duration (Deg): 244 Degree
  • Intake Duration At 0.050 Inch Lift (Deg): 194 Degree
  • Intake Valve Lift With OE Rocker Arm Ratio (in): 0.398 Inch
  • Intake Centerline (Deg): 107 Degree
  • Lobe Separation Angle (Deg): 112 Degree
  • Idle Vacuum At 1000 RPM (in): 16 Inch
  • Range (RPM): 0 To 6750 RPM
  • Intake Valve Lift (in): 0.398 Inch
  • Lifter Style: Hydraulic
  • Exhaust Valve Lift (in): 0.442 Inch
  • Engine Make/Size: Chevrolet Small Block 262-400
  • Camshaft Type: Hydraulic

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

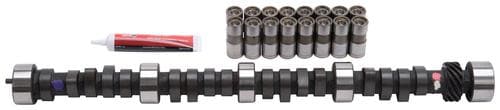

Camshaft; With Lifter Kit;

Edelbrock part number 3702 Performer-Plus camshaft is designed for small-block Chevrolet 305-350 T.B. and LG-4 V-8 applications. This Edelbrock cam kit produced 245 foot/Lbs. of torque when used with number 3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4X4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: Duration at 0.050 Intake: 194 degrees - Duration at 0.050 Exhaust: 214 degrees- Lift at Valve Intake: .398 inch- Lift at Valve Exhaust: 0.442 inch- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees- Idle Vacuum at 1000 RPM's: 16 inch Designed for Optimum Torque and Acceleration. Maximum Performance From Idle through Mid-Range. Matched to Edelbrock Performer Intakes. Includes Hydraulic Lifters and Assembly Lube. Major Improvement in Throttle Response and Torque. Use For Daily Drivers/Trucks/Vans/RVs/4X4s. Take the Guesswork Out of Camshaft Selection!
