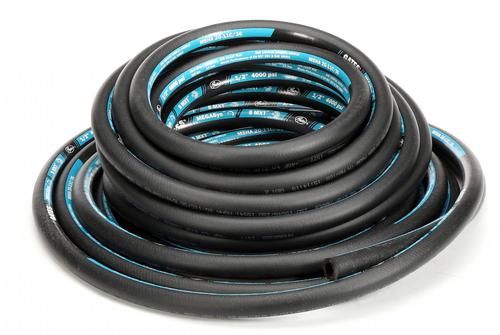

Gates MXT 50 Foot Hydraulic Hose - 85048
- Part #
- 85048
- Line:
- GAT
Product Information
- Warranty: 1 Year Limited Warranty
- Unit of Measure: Per Foot
- UPC: # 770075773726
- Length (ft): 50 Foot
- Material: Nitrile Rubber (NBR)
- Minimum Bend Radius (in): 2-3/4 Inch
- Hose Inside Diameter (in): 1/2 Inch
- Temperature Range (Deg F): -40 To 212 Degree
- Temperature Range (Deg C): -40 To 100 Degree
- Maximum Working Pressure (psi): 4000 psi
- Hose Outside Diameter (in): 13/16 Inch
- Minimum Burst Pressure (psi): 16000 psi
- Cover Color: Black
- Cover Material: Polychloroprene
- Cover Type: Flame, Oil, Weather Resistant
- Reinforcement Style: One Braid, High-Tensile Steel Wire
Applications for this Product
- This product is universal and applies to all vehicles.
Detailed Description
Hydraulic Hose; MXT MegaSys Wire Braid Hose; SAE 100R16;
MXT is recommended for high-pressure hydraulic oil lines and designed to address our customers' evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates now offers a new hydraulic solution that is lighter, stronger, and more flexible
- For use with MegaCrimp Couplings [G25 Series]
- Tested to industry-leading 600,000 impulse cycles
- More flexible with up to 40 percent lower force-to-bend for faster and more ergonomic installation
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Degree Fahrenheit to +212 Degree Fahrenheit (-40 Degree Celsius to +100 Deg. C)
