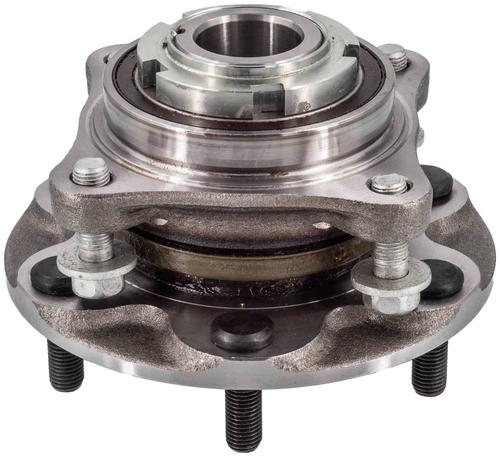

MasterPro Hub Assembly - 50004
- Part #
- 50004
- Line:
- MPB
Product Information
- Warranty: 1 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 31447048706
- Material: Steel
- Flange Diameter (in): 6.575 Inch
- Flange Diameter (mm): 167mm
- Flange Offset (in): 2.146 Inch
- Flange Offset (mm): 54mm
- Hub Pilot Diameter (in): 4.169 Inch
- Hub Pilot Diameter (mm): 105mm
- New Or Remanufactured: New
- Flange Shape: Round
- Wiring Harness Included: No
- Greaseable: No
- Number Of Splines: 0
- Bearing Type: Tapered
- Inner Ring Width (in): 2.007 Inch
- Outer Ring Width (in): 1.004 Inch
- Hub Centerbore Diameter (in): 5.197 Inch
- Driven Or Non-Driven: Non-Driven
- Gasket Or Seal Included: Yes
- ABS Sensor Ring Diameter (in): 3.465 Inch
- ABS Sensor Ring Diameter (mm): 88mm
- ABS Ring Type: Magnetic
- Number Of ABS Sensor Ring Teeth: 48
- ABS Sensor Included: Yes
- Number Of Mounting Bolts To Knuckle: 4
- Number Of Lug Bolts Included: 6
- Lug Bolt Thread Size: M12-1.25
- Total Hub Diameter (in): 3.780 Inch
- Total Hub Diameter (mm): 96mm
- Hub Centerbore Diameter (mm): 132mm
- Total Hub Height (in): 4.429 Inch
- Total Hub Height (mm): 112mm
- Number Of Flange Bolts Included: 4
- Flange Bolt Size (in): 1.120 Inch
- Flange Bolt Size (mm): 28mm
- Flange Bolt Thread Size: M12-1.50
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Hub Assembly;
- Generation 3
- Pressed, Tapered Bearing
Brand Information
Master Pro Hub Assemblies
Extensive engineering and the use of the highest quality materials available make Master Pro the best-in-class choice for replacement hub assemblies. All Master Pro hub assemblies are 100% tested to ensure each unit meets or exceeds OEM specifications and are proudly manufactured to industry-leading quality standards.
- OEM-supplied ABS speed sensors are 100% tested for proper operation and performance
- Wheel hub units are sealed and greased for long-lasting, dependable performance
- Integral raceways are induction-hardened and machined to precise clearances for increased bearing life
- High-temperature seals with multiple-lip design help to prevent grease leaks and contamination
