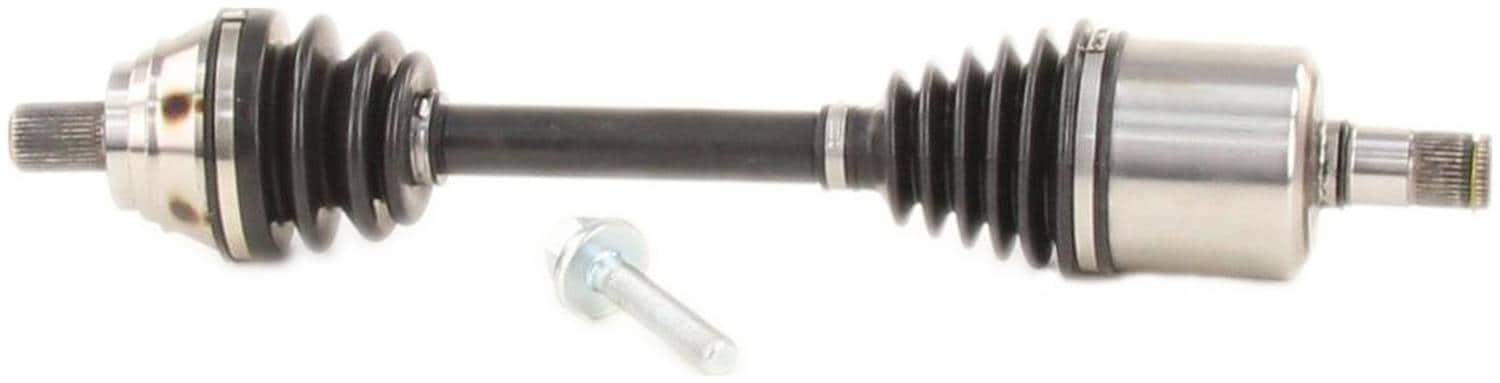

Import Direct CV Axle Shaft - New - VW8171
- Part #
- VW8171
- Line:
- IDD
Product Information
- Warranty: Limited Lifetime Warranty
- Unit of Measure: Each
- UPC: # 844084094131
- New Or Remanufactured: New
- Number Of Inboard Splines: 37
- Number Of Outboard Splines: 36
- Outboard Joint Type: Conventional
- Overall Compressed Length (mm): 545mm
- Number Of Bolt Holes: 1
- Axle Nut Included: No
- Number Of Inboard Joint Bolt Holes: 0
- Number Of Outboard Joint Bolt Holes: 0
- Axle Bolt Length (mm): 97mm
- Axle Bolt Thread Size: M16-1.50
- Axle Bolt Hex Size (mm): 27mm
- Boot Material: Neoprene
- Overall Compressed Length (in): 21-7/16 Inch
- Inboard Shaft Connection Style: Spline
- Outboard Shaft Connection Style: Bolt-On
- ABS Tone Ring Included: No
- Number Of Inboard Shaft Bolts: 0
- Number Of Outboard Shaft Bolts: 1
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Constant Velocity (CV) Axle Shaft; Angular Adjusted Roller;
ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company.
Brand Information
Import Direct(TM) will meet your import needs in what has become a very complex and competitive market segment. Professional technicians and do-it-yourselfers alike can trust in Import Direct(TM) to provide a genuine import part in every box. Take the challenge out of finding the right import replacement parts, ask for Import Direct(TM).
