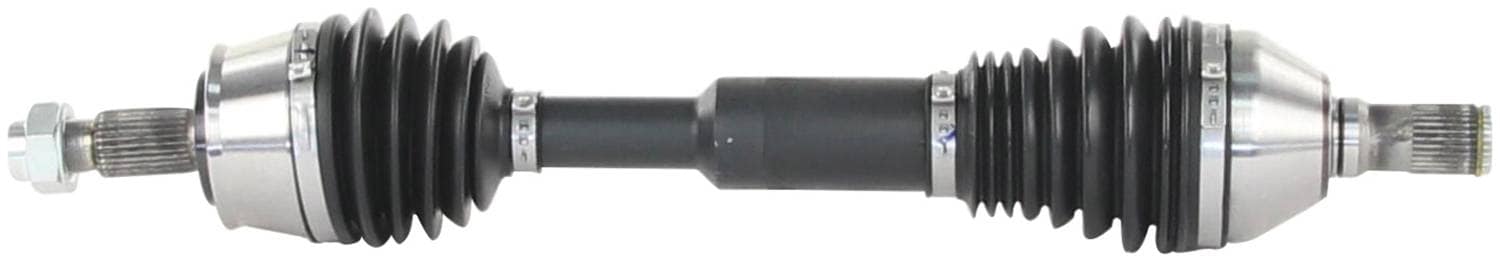

Import Direct CV Axle Shaft - New - FI8009ET
- Part #
- FI8009ET
- Line:
- IDD
Product Information
- Warranty: 3 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 195013094860
- New Or Remanufactured: New
- Number Of Inboard Splines: 30
- Number Of Outboard Splines: 27
- Outboard Joint Type: Conventional
- Axle Nut Head Type: Hex
- Axle Nut Thread Size: M24-1.50
- Overall Compressed Length (mm): 599mm
- Axle Nut Included: Yes
- Axle Nut Height (mm): 27mm
- Axle Nut Hex Size (mm): 36mm
- Axle Nut Length (mm): 42mm
- Axle Nut Locking Type: Staked
- Axle Bolt Thread Size: M24-1.50
- Boot Material: Thermoplastic
- Overall Compressed Length (in): 23-9/16 Inch
- Inboard Shaft Connection Style: Spline
- Outboard Shaft Connection Style: Spline
- ABS Tone Ring Included: No
- Socket Size: 36mm
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Constant Velocity (CV) Axle Shaft; Extended Travel;
Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle
