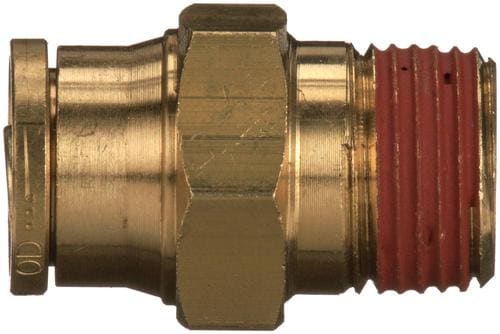

Gates Hydraulic Fitting - G31100-0204
- Part #
- G31100-0204
- Line:
- GAT
Product Information
- Warranty: 1 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 651001555008
- Material: 360 Brass
- Length (in): 1 Inch
- Length (mm): 25mm
- Temperature Range (Deg F): -40 To 200 Degree
- Maximum Working Pressure (psi): 150 psi
Applications for this Product
- This product is universal and applies to all vehicles.
Detailed Description
Hydraulic Fitting;
Recommended for air brake systems - compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Degree Fahrenheit to +200 Degree Fahrenheit (-40 Degree Celsius to +93 Deg. C)
- Internal and external machined thread for connection to ports. Machining retains collet, tube support and O-Ring
- Tube support prevents tube collapse during severe loading conditions
- Collet teeth grip the tube, holding it firmly in the fitting
- Internal O-Ring provides a seal and necessary interference between tube and fitting body
