Fill-Rite Digital Meter - TT10AN
- Part #
- TT10AN
- Line:
- FIL
Product Information
- Warranty: 2 Year LIMITED WARRANTY
- Unit of Measure: Each
- UPC: # 89404226285
- Color: Red, Silver
- Diameter (in): 4 Inch
- Inlet Thread Size: 1 Inch
- Material: Aluminum
- Working Pressure (psi): 50 psi
- Height (in): 2-1/2 Inch
- Width (in): 4 Inch
- Hardware Included: Yes
- Outlet Thread Size: 1 Inch
- Flow Rate (GPM): 2 To 35 GPM
- Inlet Size (in): 3/4, 1 Inch
- Outlet Size (mm): 25mm
- Maximum Pressure (psi): 50 psi
- Plug Included: No
- Outlet Size (in): 1 Inch
- Socket Included: No
- Maximum Temperature (Deg F): 176 Degree
- Transfer Capacity (gpm): 35 GPM
- Digital Meter Included: Yes
- Fluid Compatibility: Diesel, Gasoline, B20, E15, Kerosene
- Maximum Flow Rate (GPM): 35 GPM
Applications for this Product
- This product is universal and applies to all vehicles.
Detailed Description

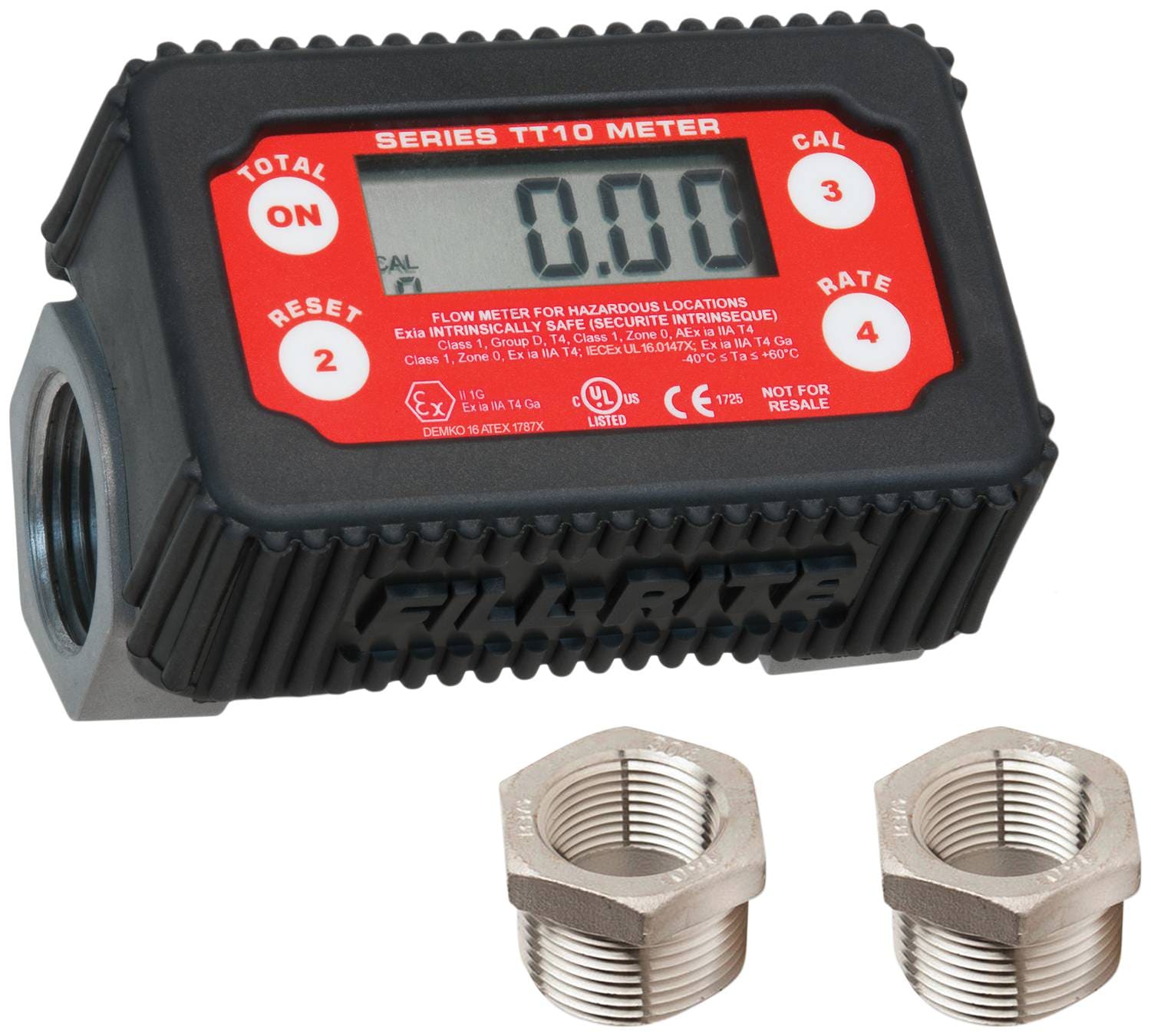

Digital Inline Meter; The TT10AN model that is built with an aluminum housing ensures enhanced durability for metering diesel, gasoline, kerosene, B20, and E15. Mount it straight off the pump or at the end of the hose, the TT10 meter is flexible in its use, not to mention it is the only meter in its class with UL/ATEX listed electronic and mechanical components. Capable of measuring fluids in gallons, liters, quarts, pints, or ounces, each meter comes with a 4 digit display. Operates in flow ranges between 2-35 GPM with an accuracy rating of +/- 1%. Has 1 inch NPT female threaded inlet and outlet with 3/4 inch reducer bushings included. Temperature rating of -40 Degree F to 176 Degree F. Meter totals and calibration preserved when replacing the AA batteries (2). Made in the USA
Brand Information
You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.
