Fill-Rite DC Fuel Transfer Pump - RD812NH
- Part #
- RD812NH
- Line:
- FIL
Product Information
- Warranty: 2 Year LIMITED WARRANTY
- Unit of Measure: Each
- UPC: # 89404224700
- Color: Red, Silver
- Diameter (in): 7-7/8 Inch
- Hose Length (in): 96 Inch
- Inlet Thread Size: 3/4 Inch
- Length (ft): 8 Foot
- Locking: Yes
- Material: Iron, Stainless Steel
- Thread Size: 3/4 Inch
- Working Pressure (psi): 16 psi
- Height (in): 4-5/8 Inch
- Width (in): 7-7/8 Inch
- Body Material: Cast Iron, Aluminum
- Gasket Material: Nitrile Rubber (NBR)
- Outlet Thread Size: 3/4 Inch
- Flow Rate (GPM): 8 GPM
- Inlet Size (in): 3/4 Inch
- Inlet Size (mm): 19mm
- Outlet Size (mm): 19mm
- Voltage (V): 12 Volt
- Maximum Pressure (psi): 16 psi
- Plug Included: No
- Horsepower (HP): 1/4 HP
- Hose Diameter (in): 3/4 Inch
- Outlet Size (in): 3/4 Inch
- Hose Length (ft): 8 Foot
- Socket Included: No
- Nozzle Included: Yes
- Hose Diameter (mm): 19mm
- Maximum Temperature (Deg F): 105 Degree
- Nozzle Material: Aluminum
- Transfer Capacity (gpm): 8 GPM
- Discharge Hose Included: Yes
- Spout Material: Aluminum
- Fluid Compatibility: Diesel, Gasoline, B20, E15, Kerosene
- Hose Length (mm): 2438mm
- Suction Tube Diameter (in): 3/4 Inch
- Suction Tube Length (in): 20 To 34-3/4 Inch
- Maximum Flow Rate (GPM): 8 GPM
Applications for this Product
- This product is universal and applies to all vehicles.
Detailed Description

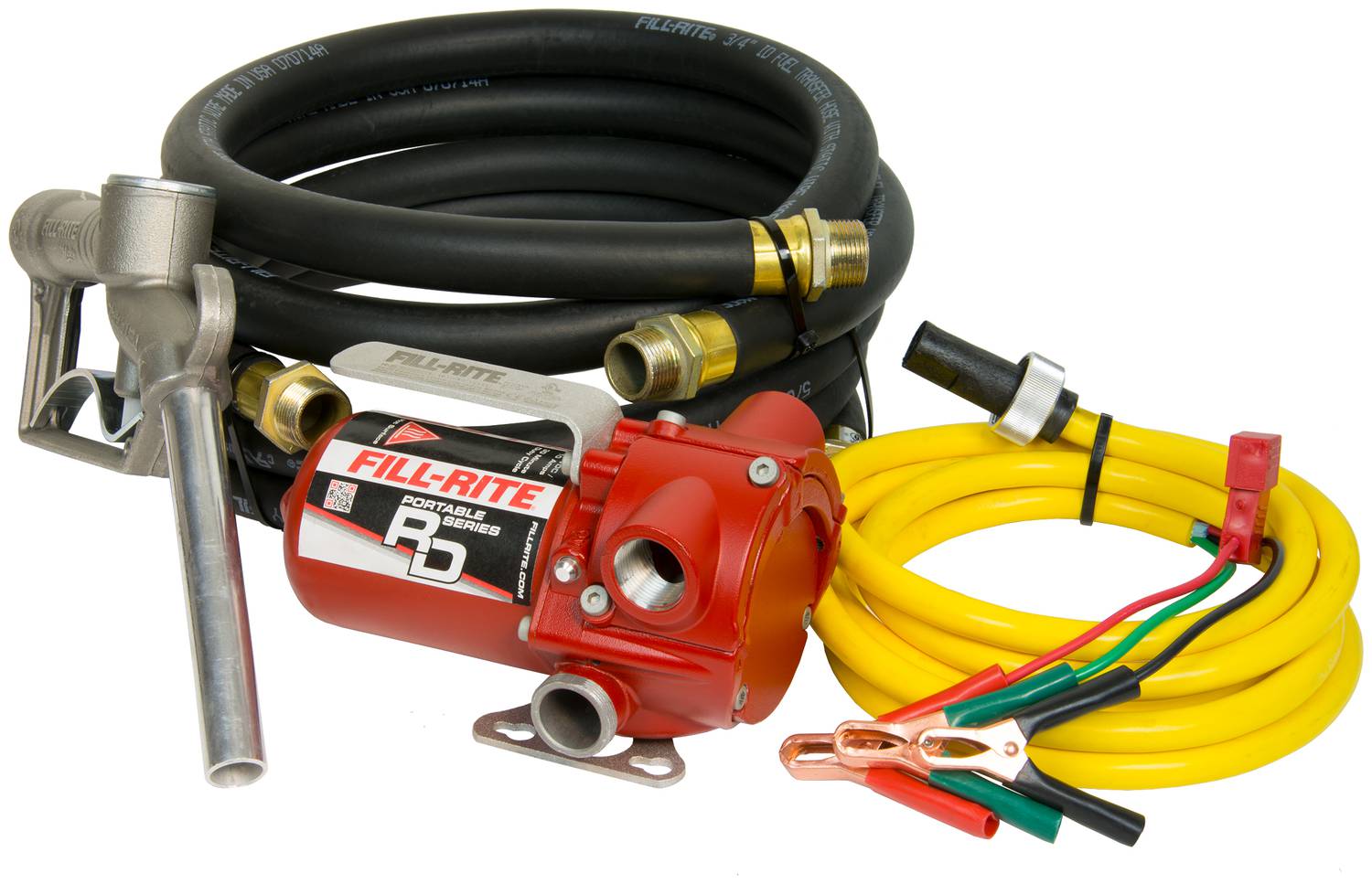

12 VDC Portable Pump with Hose And Nozzle; The Fill-Rite RD812NH 12V DC portable UL/cUL, ATEX, IECEx, CE listed pump is capable of producing up to 8 GPM ( 30 LPM) and is designed for gasoline, diesel, biodiesel up to B20, E15, M15, kerosene and mineral spirits. The most versatile aluminum DC pump available on the market with configurable inlet and outlet flanges with a quick connect battery clip power cord and multiple mounting options; this pump is perfect for where you need to go. The RD812NH utilizes 3/4 inch NPT fittings with a manual nozzle, 6 foot suction and 8 foot discharge hose. Made in the USA
Brand Information
You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications.
