E-Force

Edelbrock E-Force Supercharger Kit - 15175

Part #
15175
Line:
EDB

Product Information

  • Warranty:  90 Day Limited Warranty
  • Unit of Measure:  Each
  • UPC:  # 85347151752
  • Finish: Powder Coat
  • Material: Cast Aluminum
  • Hardware Included: Yes
  • System Type: Stage 1 - Street System
  • Bracket Included: Yes
  • Hose Included: Yes
  • Gasket Or Seal Included: Yes
  • Air Filter Included: Yes
  • Maximum Boost (psi): 14 psi
  • Blower - Drive Pulley Diameter (in): 3-1/4 Inch

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

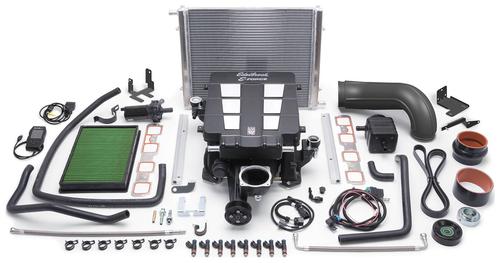

Supercharger Kit;

The Edelbrock Supercharger System part number 15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Bolt On Installation. Eaton+ TVS Rotor Assembly. Self-Contained Oil System. PCM Programming Module with App. Spec. Tuning. Little To No Decrease In Fuel Economy.

Brand Information

Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nation's premier designers, manufacturers and distributors of performance replacement parts for the automotive and motorcycle aftermarkets. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses six locations in Southern California totaling more than 500,000 square feet.
