CSF Cooling

CSF Cooling Radiator - 2882

Part #
2882
Line:
CSF

Product Information

  • Warranty:  90 Day Limited Warranty
  • Unit of Measure:  Each
  • UPC:  # 710353028827
  • Engine Oil Cooler Included: No
  • Inlet Location: Top Driver Side
  • Outlet Location: Bottom Passenger Side
  • Transmission Oil Cooler Included: No
  • Core Material: Aluminum
  • Attachment Method: Slip-On
  • Cap Included: Yes
  • Core Height (in): 15-3/4 Inch
  • Core Width (in): 29-7/16 Inch
  • Core Depth (in): 2-1/16 Inch
  • Number Of Rows: 2
  • Inlet Hose Diameter (in): 1-7/16 Inch
  • Outlet Hose Diameter (in): 1-3/8 Inch
  • Flow Type: Down Flow

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

Radiator;

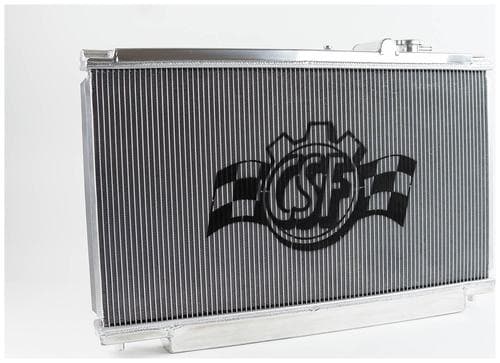

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your MK4 Supra running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15 percent over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab

  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • All-Aluminum Race Style Drain Plug
  • 1-Hour "Mirror Finish" Hand Polish
  • Drop-in Fit

Brand Information

Get it all from CSF! With over 3000 models to chose from, CSF's coverage is second to none.When you choose CSF, you are dealing directly with the manufacturer, not a broker or an importer. CSF's factories are ISO certified, and are OE suppliers to many US, German and Asian manufacturers. When you purchase a CSF product, you can be rest assured that it has been manufactured on the same production lines with the same high quality standards as their OE customers. Every single radiator is subject to rigorous testing procedures such as Hydrostatic Testing, Vacuum decaying and life cycle testing, and is designed to always be a "drop-in fit".

  • CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
