Cloyes

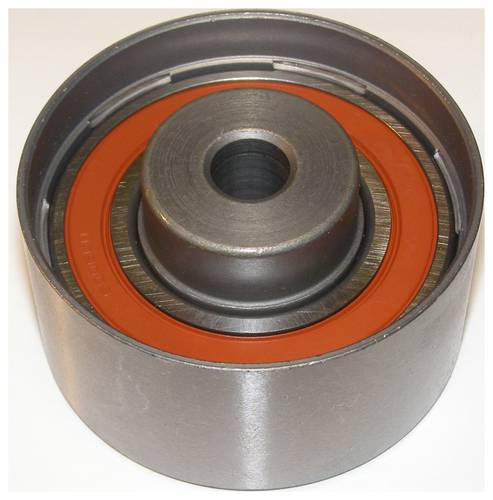

Cloyes Timing Belt Idler - 9-5444

Part #
9-5444
Line:
CLO

Product Information

  • Warranty:  Limited Lifetime Warranty
  • Unit of Measure:  Each
  • UPC:  # 999999999999999
  • Contact Surface: Smooth
  • Flanged: No
  • Material: Steel
  • Number Of Pulleys: 1
  • Pulley Outside Diameter (mm): 59mm
  • Pulley Width (mm): 29mm
  • Height (in): 1.250 Inch
  • Height (mm): 31mm
  • Length (in): 2.360 Inch
  • Length (mm): 59mm
  • Adjustable: No
  • Bracket Included: No
  • Bolts Included: No
  • Pulley Included: Yes
  • Mounting Hole Diameter (in): 0.400 Inch
  • Pulley Width (in): 1.180 Inch
  • Bushing Included: Yes
  • Dust Shield Included: No
  • Spring Included: No
  • Pulley Outside Diameter (in): 2.370 Inch
  • Number Of Mounting Holes: 1
  • Stud Included: No
  • Nut Included: No
  • Retainer Included: No
  • Spacer Included: No
  • Lock Washer Included: No
  • Tensioner Included: No
  • Damper Included: No
  • Shoe Included: No
  • Number Of Pulley Grooves: 0
  • Mounting Hole Diameter (mm): 10mm
  • Pulley Inside Diameter (in): 2.160 Inch
  • Pulley Inside Diameter (mm): 54mm

Applications for this Product

  • Select a vehicle to see vehicle applications.

Detailed Description

Timing Belt Idler;

Recommended that the belt tensioner(s) and belt idler(s) also be replaced when the belt is replaced as these components play a vital role in system stability and accurate timing; Each part is extensively tested for function, fitment, and durability to ensure optimal performance; Meet or exceed OEM performance requirements; CAD designed and manufactured using premium materials; Refer to our online catalog for detailed application-specific information

  • A timing belt idler is a pulley that helps route the timing belt in its correct position. Depending on the size and length of the belt and engine, there can be one or more idler pulleys within a timing system. Specifically designed for the replacement of worn timing belt idlers, these parts are available as complete timing kits as well as for individual purchase and installation

Brand Information

Cloyes, based in Fort Smith, Ark., is the North American leader and global designer, developer, manufacturer and distributor of timing drive systems and components for the automotive aftermarket. Its products are mission critical components for engine performance and function used in high-performance and replacement applications. Cloyes serves a broad customer base, including wholesale distributors, national and local retailers, re-packagers, and production engine rebuilders, and sells its products under the Cloyes brand throughout North America and Dynagear and CY-LENT brands in Mexico.
