Champion Equipment 10 HP 120 Gallon Air Compressor - RV2-15A-S05
- Part #
- RV2-15A-S05
- Line:
- CMP
Product Information
- Warranty: 2 Year LIMITED WARRANTY
- Unit of Measure: Each
- UPC: # 815151015908
- CFM Rating: 32 cfm
- Power Source: Electric
- Pump Type: Two Stage Reciprocating
- Attachment Method: Tank Mount
- Voltage (V): 460 Volt
- Housing Material: Cast Iron
- Maximum Pressure (psi): 175 psi
- Tank Capacity (Gal): 120 Gallon
- Gauge Type: Pressure
- Head Material: Cast Iron
- Engine Type: ODP
- Industrial Grade: Yes
- Motor Material: Cast Iron
- Number Of Cylinder Pumps: 4
- Light Included: No
- Block Material: Cast Iron
- Rated Horsepower (HP): 10 HP
- Quick Release Fitting: No
- Number Of Phases: 3
- Drain Tank Frequency: Daily
- Flywheel Material: Cast Iron
Applications for this Product
- This product is universal and applies to all vehicles.
Detailed Description

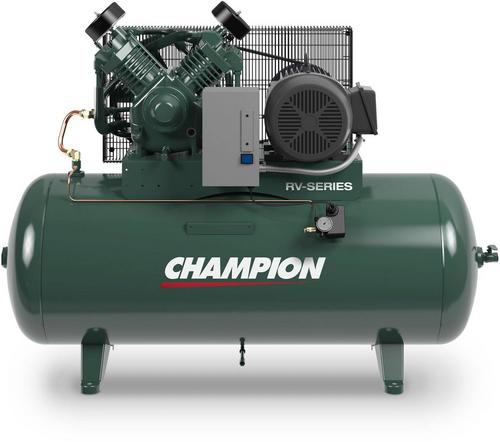

HRV10-12 RV-Series Reciprocating Simplex Reciprocating Compressor. 10 HP 460V/3 Phase mounted on 120 Gallon Horizontal Tank.; Air Compressor; HRV10-12, 10Hp 460V/3 Phase Compressor On A 120 Gallon Horizontal Tank, 1800 RPM Motor With Starter
Brand Information
Since 1919 Champion has a solid reputation for providing the highest quality in reciprocating and rotary screw air compressor systems, parts and service. With over 85 years experience in designing and manufacturing air compressor systems, Champion knows and understands the application of our products in many different operating environments.
With over 800 approved Distributors and Service Centers Nationwide, Champion is well represented to sell or service your air compressor system.
Discover Champion and what we have to offer!
With over 800 approved Distributors and Service Centers Nationwide, Champion is well represented to sell or service your air compressor system.
Discover Champion and what we have to offer!
