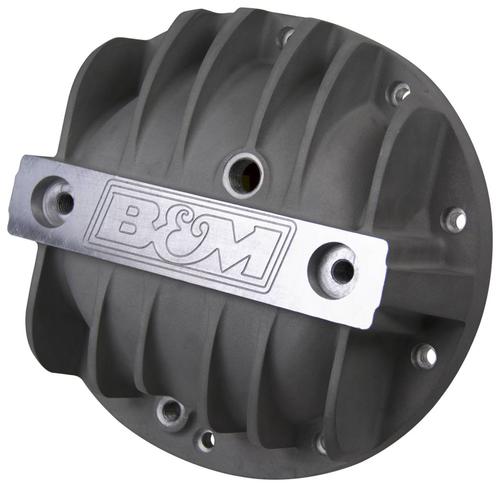

B&M 10 Bolt Hole Differential Cover - 70502
- Part #
- 70502
- Line:
- BM
Product Information
- Warranty: 1 Year Limited Warranty
- Unit of Measure: Each
- UPC: # 19695705022
- Material: Aluminum
- Hardware Included: Yes
- Bolts Included: Yes
- Location: Rear
- Drain Plug Included: Yes
- Number Of Bolt Holes: 10
- Color/Finish: Gray
- Gasket Or Seal Included: No
- Axle Model: GM 10.5
Applications for this Product
- Select a vehicle to see vehicle applications.
Detailed Description
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a machined B and M logo and all necessary hardware, and easy-to-follow detailed instructions for a quick and simple installation you can do at home
- Load Bolts for Additional Support for Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- A356.0-T6 Aluminum Construction
- Additional .4-quart Fluid Capacity
- Over 65 Years of B and M Quality
- Machined B and M Logo
